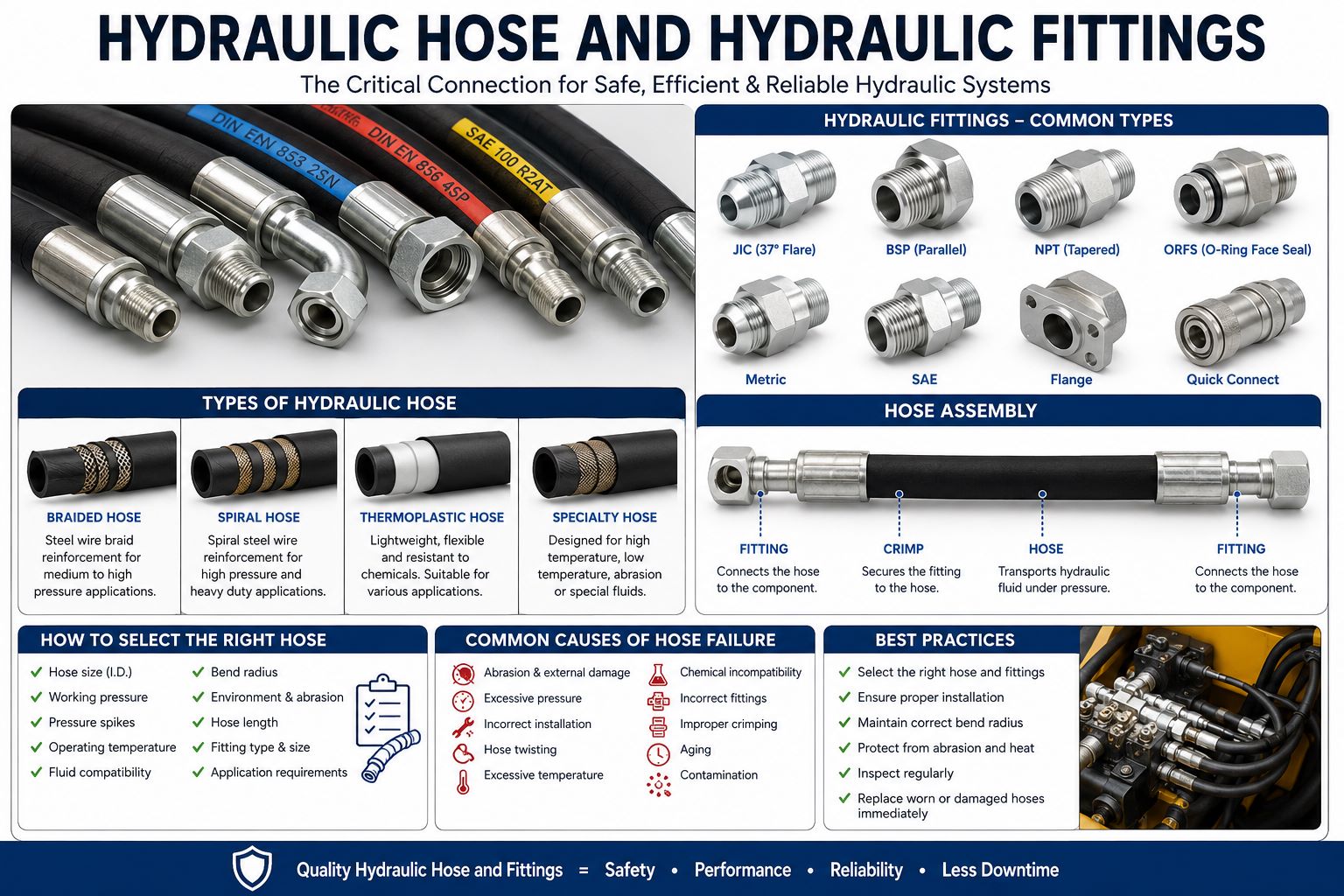

Hydraulic Hose and Hydraulic Fittings: A Complete Guide to Reliable Fluid Power Connections
Hydraulic systems power some of the world’s most demanding machinery, from excavators and industrial presses to agricultural equipment and manufacturing systems. At the heart of these applications are Hydraulic Hose and Hydraulic Fittings, two critical components responsible for safely transporting pressurized hydraulic fluid between pumps, valves, cylinders, motors, and other equipment.
Although these components may appear simple, selecting the wrong hose or fitting can lead to pressure loss, fluid leakage, premature equipment failure, unexpected downtime, and serious safety hazards. Understanding their construction, specifications, compatibility, installation, and maintenance is therefore essential for reliable hydraulic system performance.
What Is a Hydraulic Hose?
A Hydraulic Hose is a flexible, reinforced tube specifically designed to transport hydraulic oil or other compatible fluids under pressure. Unlike ordinary tubing, hydraulic hoses must withstand high operating pressure, temperature variations, vibration, bending, abrasion, and demanding industrial conditions.
Most hydraulic hoses consist of three primary layers:
- Inner tube: Carries hydraulic fluid and provides chemical compatibility.
- Reinforcement layer: Usually made from braided or spiral steel wire or textile reinforcement to withstand pressure.
- Outer cover: Protects the hose against abrasion, weather, oil, ozone, and environmental damage.
The construction varies according to pressure rating and application requirements.
Why Hydraulic Fittings Are Equally Important
Hydraulic Fittings connect hoses to hydraulic components such as pumps, valves, cylinders, manifolds, motors, and adapters. They create secure connections capable of containing high-pressure fluids without leakage.
Different hydraulic systems use different connection standards. Common fitting configurations include threaded, flange, compression, and quick-connect designs.
The fitting must match the hose size, pressure rating, connection standard, thread type, sealing method, and hydraulic fluid.
Even a high-quality Hydraulic Hose can fail if it is combined with an incompatible or improperly installed fitting.
Common Types of Hydraulic Hose
Hydraulic hoses are manufactured for different pressure and operational requirements.
Braided Hydraulic Hose
Braided hoses generally contain one or more layers of steel-wire reinforcement. They provide flexibility while handling moderate to high pressure.
Typical applications include industrial machinery, agricultural equipment, construction machinery, and mobile hydraulic systems.
Spiral Hydraulic Hose
Spiral hoses contain multiple layers of spirally arranged steel wire. They are engineered for very high-pressure and impulse-intensive applications.
They are commonly used in excavators, mining equipment, heavy construction machines, hydraulic presses, and other demanding systems.
Thermoplastic Hydraulic Hose
Thermoplastic hoses are lightweight, flexible, and resistant to many chemicals. They may be suitable for specialized applications where low weight, cleanliness, or compact routing is important.
Specialty Hydraulic Hose
Specialized hose constructions are available for high temperatures, low temperatures, abrasion-intensive environments, non-conductive applications, and specific hydraulic fluids.
Common Types of Hydraulic Fittings
Choosing appropriate Hydraulic Fittings requires understanding connection standards and sealing mechanisms.
Common fitting families include:
- JIC fittings
- BSP fittings
- NPT fittings
- ORFS fittings
- Metric fittings
- SAE fittings
- Flange fittings
- Quick-connect couplings
JIC connections commonly use a 37-degree flare, while ORFS connections use an O-ring face seal. BSP, NPT, metric, and SAE connections have different thread profiles and sealing characteristics.
Thread types should never be assumed to be interchangeable simply because two fittings appear similar.
Hydraulic Hose vs Hydraulic Fittings
| Feature | Hydraulic Hose | Hydraulic Fittings |
| Primary purpose | Transfers hydraulic fluid | Connects hose with components |
| Construction | Tube, reinforcement and cover | Steel, stainless steel or other materials |
| Flexibility | Flexible | Mostly rigid |
| Pressure requirement | Application dependent | Must meet system pressure |
| Selection factors | Size, pressure, temperature, fluid | Thread, size, seal, pressure |
| Common failure | Cracking, abrasion, bursting | Leakage, corrosion, thread damage |
Both components must operate as a properly engineered assembly rather than being selected independently.
How to Select the Correct Hydraulic Hose
A practical approach to hose selection is often summarized through important operating parameters.
Consider:
- Hose inside diameter
- Maximum working pressure
- Pressure spikes
- Operating temperature
- Hydraulic fluid compatibility
- Bend radius
- External environment
- Abrasion exposure
- Hose length
- Connection requirements
An undersized Hydraulic Hose can increase fluid velocity and pressure drop, while an oversized hose can increase cost, weight, and installation space.
Pressure rating is particularly important. The selected hose must safely support the maximum expected system pressure according to the applicable manufacturer specifications.
How to Choose Hydraulic Fittings
Selection of Hydraulic Fittings should begin with identifying the equipment connection accurately.
Check the thread diameter, thread pitch, fitting angle, sealing surface, fitting material, pressure rating, and connection standard.
Avoid identifying fittings only by visual inspection. Similar-looking threads may have different pitches or sealing methods.
Using incorrect fittings can damage threads, prevent proper sealing, and create dangerous high-pressure leaks.
Importance of Pressure Ratings
Hydraulic systems can operate under considerable pressure. Therefore, every component in the hose assembly must meet the required pressure specification.
The system should effectively be limited by its lowest-rated component.
For example, installing a high-pressure hose with a fitting rated below the system’s maximum operating pressure does not create a high-pressure assembly. The fitting becomes the limiting component.
Pressure surges should also be considered because repeated impulse loads can shorten service life.
Temperature and Fluid Compatibility
Temperature affects both hydraulic fluid and hose materials.
Excessive heat may cause the inner tube to harden, crack, or deteriorate. Extremely low temperatures may reduce flexibility.
Fluid compatibility is equally important. Hydraulic oils, synthetic fluids, biodegradable fluids, water-glycol solutions, and specialized chemicals may require different hose materials.
Always verify compatibility between the hydraulic fluid and the hose inner tube, seals, and fitting materials.
Proper Hydraulic Hose Installation
Correct installation significantly influences hose service life.
A Hydraulic Hose should not be twisted during installation. Twisting can damage reinforcement and reduce pressure capability.
The hose should also maintain its specified minimum bend radius.
Additional installation practices include providing sufficient movement allowance, protecting hoses from sharp edges, avoiding excessive tension, preventing unnecessary contact with hot surfaces, and securing hose routes appropriately.
Common Causes of Hydraulic Hose Failure
Hydraulic hose failures often develop gradually.
Common causes include:
- External abrasion
- Excessive operating pressure
- Incorrect routing
- Hose twisting
- Excessive temperature
- Chemical incompatibility
- Incorrect fittings
- Improper crimping
- Aging
- Excessive bending
- Contamination
Regular inspection can identify many problems before complete hose failure occurs.
Maintenance and Inspection Practices
Preventive maintenance improves hydraulic reliability.
Inspect Hydraulic Hose assemblies for cracking, cuts, exposed reinforcement, abrasion, blistering, oil leakage, crushed areas, loose fittings, corrosion, and unusual deformation.
Leaks around Hydraulic Fittings should never automatically be solved by excessive tightening. The actual cause may involve damaged threads, worn seals, incorrect fitting selection, contamination, or damaged sealing surfaces.
Never inspect suspected high-pressure pinhole leaks using bare hands because hydraulic fluid injection injuries can be extremely serious.
Frequently Asked Questions
1. What is a hydraulic hose used for?
A Hydraulic Hose transfers pressurized hydraulic fluid between different components within mobile and industrial hydraulic systems.
2. What are hydraulic fittings used for?
Hydraulic Fittings securely connect hoses, tubes, pumps, valves, cylinders, motors, and other hydraulic components.
3. How do I choose hydraulic hose size?
Consider required flow rate, internal diameter, fluid velocity, pressure, hose length, and equipment specifications.
4. Can different hydraulic fittings be connected together?
Only compatible standards should be connected directly. Incorrect thread combinations can cause leakage or connection failure.
5. What causes hydraulic hoses to burst?
Common causes include overpressure, abrasion, aging, incorrect installation, excessive temperature, damaged reinforcement, and incompatible components.
6. How often should hydraulic hoses be inspected?
Inspection frequency depends on operating conditions, equipment usage, pressure cycles, environment, and manufacturer recommendations.
7. Can hydraulic fittings be reused?
Some fittings may be reusable, while others are designed for specific assemblies. Always follow manufacturer requirements.
8. What does hose working pressure mean?
Working pressure is the maximum pressure the hose is designed to handle continuously under specified operating conditions.
9. Why is minimum bend radius important?
Bending below the specified radius can damage reinforcement, restrict fluid flow, and significantly reduce hose service life.
10. Why do hydraulic fittings leak?
Leaks can result from damaged seals, incorrect threads, loose connections, excessive tightening, contamination, corrosion, or damaged sealing surfaces.
